CTS OEM Electric Tricycle Lithium Battery 48v 60v 72v 105Ah Lifepo4 E Rikshaw Electric Tricycle Battery

Brand Name : CTS

Model Number : CTS-72100

Certification : CE

Place of Origin : Hunan,China

MOQ : 2 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3000 units per month

Delivery Time : 20 working days

Packaging Details : Wooden case and Carton case

Dimension : L550*W420*H240mm

Volt : 64V

Capacity : 105Ah

Cycle Time : 3000 Cycle Times

Discharge Rate : 1C

Ip Protection : IP67

Features : high energh density, long cycle

Software : Available

Management : BMS

Charge Temperature Range : 0℃~55℃

Applications : Rikshaw Tricycle

Contact Now

CTS OEM Electric tricycle lithium battery 48v 60v 72v 105Ah lifepo4 e rikshaw electric tricycle battery

Dear customer, if you are interested in our battery pack , please Send inquiry to us , our engineering team will provide you best battery solution and quotation !!!

╣PRODUCT DESCRIPTION

OEM/ODM

Application: TukTuk, Motorcycle, Scooter, Ebike, E-rickshaw, Tricycle,Golf cart

1. Grade A brand new high power Lithium lron LiFePO4 Battery cell

2. High power big current BMS (BT/Canbus)

3. Top quality metal case with lP67 4. Support customized charge and discharge port

5. GPS / Regenerative Braking Systems optional

MODEL	CTS64105	CTS76105
Cell Type - Chemistry	Prismatic- LiFePO4	Prismatic- LiFePO4
Rated Capacity	105	105Ah
Rated Voltage	64v	76.8V
Energy	6720wh	9064wh
Resistance	30mΩ	30mΩ
Self Discharge	<3% per month	<3% per month
Dimensions (L x W x H)	L550W420H240mm (Can make it smaller if you want)	L750W520H240mm (Can make it smaller if you want)
Weight	55kg	65Kg
Enclosure Protection	IP67 steel case	IP67 steel case
Discharge Cut-off Voltage	50v	50V
Continuous Discharging Current	105A	105A
Peak Discharge Current	300A for 10S	300A for 10S
Recommended Discharge Current	105A	105A
Charging Limited Voltage	73V	87.6V
Max Charging Current	100A	100A
Recommended Charge Current	50A	50A
Charge Temperature Range	0~50℃	0~50℃
Discharge Temperature Range	-20~60℃	-20~60℃
Recommended Operating Temperature	15~35℃	15~35℃
Available on request	Size, C rate, Communication protocol	Size, C rate, Communication protocol

╣Product Details

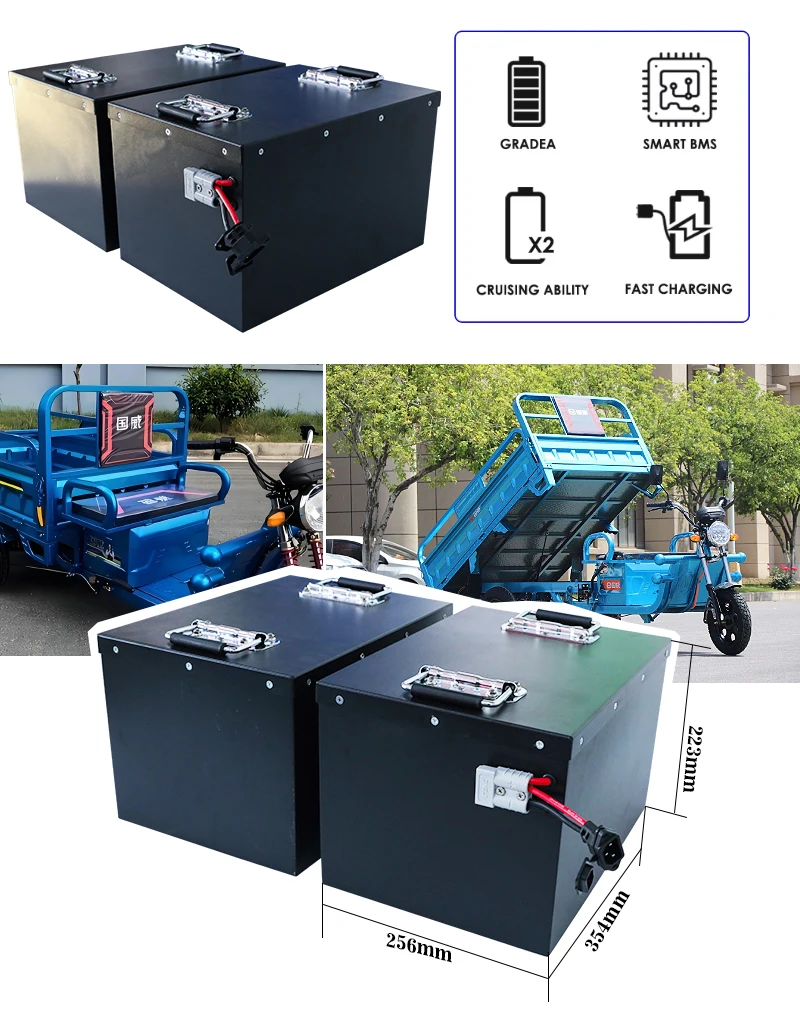

Customized Battery Pack For Kinds of Electric Vehicles 60V/72V/96V/144V Series

╣PRODUCT ADVANTAGES

╣APPLICATIONS

╣COMPANY INTRODUCTION

Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, golf cart batteries, energy storage battery system, mobile charging station etc... With 30 people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 1 6 9 4 9 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world,such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
